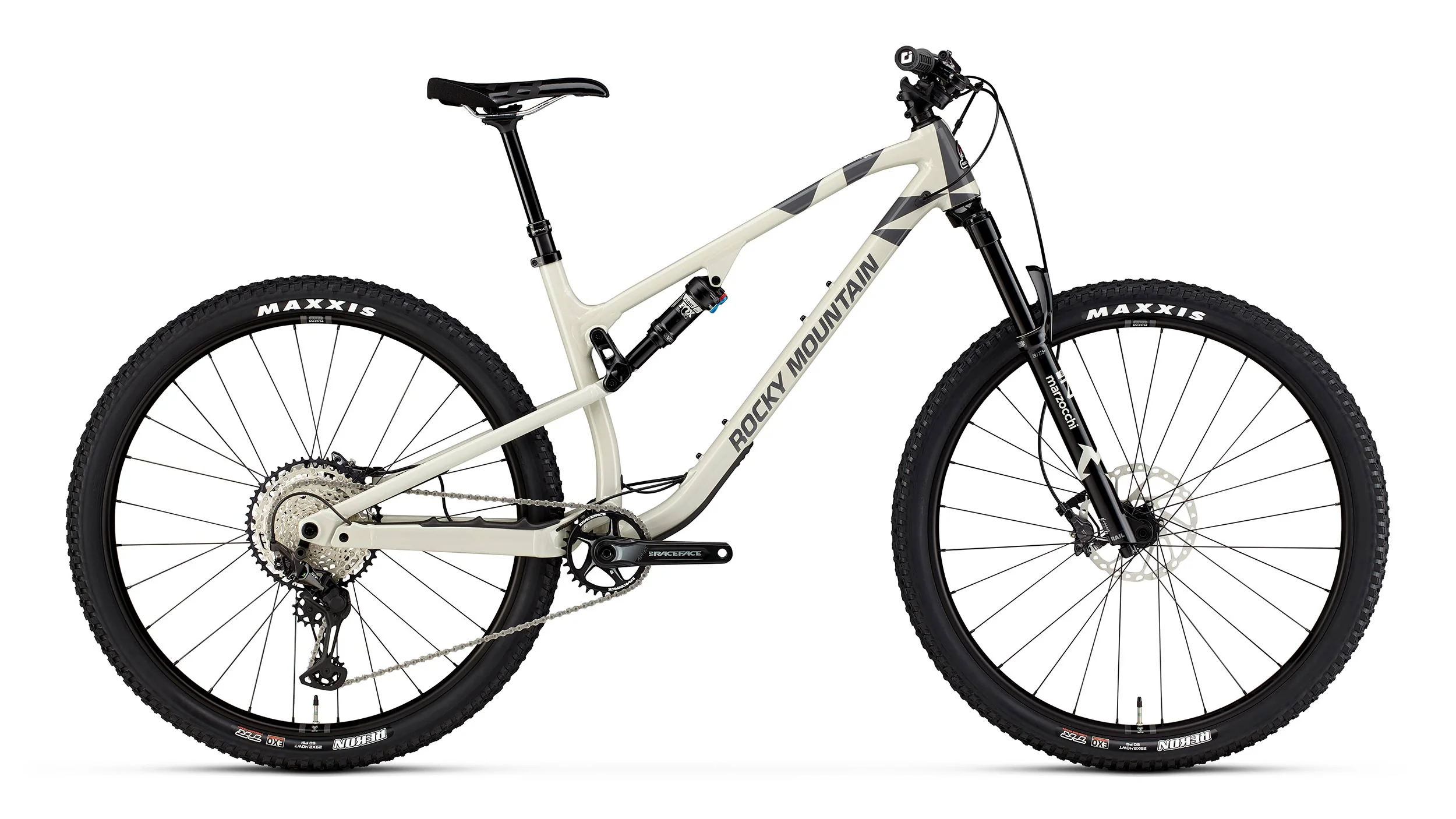

Element A50 Shimano - 2024
Online Orders: This bicycle needs to be assembled by a qualified technician.
Features
Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.
Specifications
|
Frame
|
FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel. FORM™ Alloy Rear Triangle |
|
Fork
|
Marzocchi Z2 Float EVOL Rail 130mm | 44mm Offset |
|
Front Travel
|
130 |
|
Shock
|
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ |
|
Rear Travel
|
120 |
|
Headset
|
FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race |
|
Stem
|
Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm |
|
Handlebar
|
Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
|
Grips
|
ODI Elite Pro Lock On |
|
Brakes
|
Shimano XT 2 Piston | Resin Pads |
|
Shifters
|
Shimano SLX |
|
Rear Derailleur
|
Shimano XT |
|
Cranks & Chainring
|
Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
|
Bottom Bracket
|
Shimano SM-BBMT500 |
|
Cassette
|
Shimano SLX 10-51T |
|
Chain
|
Shimano M7100 |
|
Front Hub
|
Rocky Mountain SL Sealed Boost 15mm |
|
Rear Hub
|
Shimano SLX Boost 148mm | 28H |
|
Spokes
|
DT Swiss Competition 2.0/1.8/2.0 |
|
Rims
|
WTB ST Light i27 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl |
|
Tires
|
F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready // |
|
Seatpost
|
X Fusion Manic Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm |
|
Saddle
|
WTB Volt Race 142 |
|
Weight
|
31.02|14.1 KGS |
Original: $2,622.63
-70%$2,622.63
$786.79Product Information
